Acid Urea Adblue Pump,Acid Transfer Pump,Electric Adblue Pump

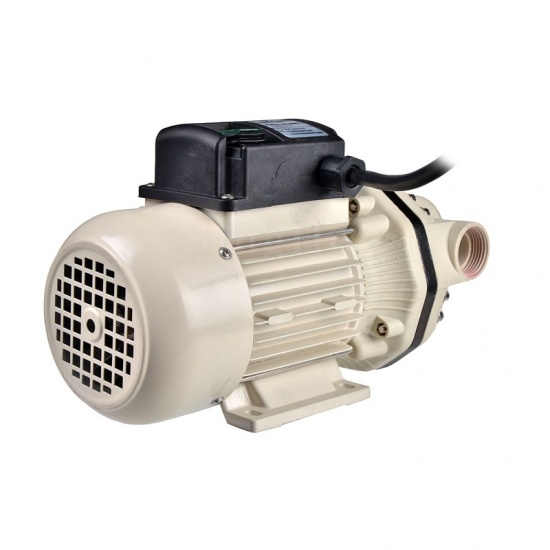

AC High Flow Diaphragm Pump Features:

Permanent magnet and continuous duty
Built-in pressure switch automatically stats and stops pump when faucets is opened and closed
Self-priming so pump can be locate above water tank
Runs dry for extended periods of time without damage
Hold excellent motor keep stable temperature of pump

Specification:

Self Priming	More than 3 meters
Port Size	Hose tail connection 3/4''
Pressure Max.	40PSI(2.8bar)
Diaphragm Material	Viton
Check Value made	Viton
Voltage	12v,24v,DC,115V,220V,230V AC
Power	On/Off switch
Body Material (DC):	Polypropylene
Material (AC):	Aluminium
Liquid of applications:	Water, oil, Urea, Adblue

Technical Data:

Model	Volts(DC/AC)	Flow(LPM)	Pressure	Amps(A)	Speed(RPM)	N.W./G.W.(KGS)
HV-30A	12VDC	30-35	40PSI(2.8bar)	15	2800	5/5.5
HV-30B	24VDC	30-35	40PSI(2.8bar)	7.5	2800	5/5.5
HV-30S	115VAC	30	25PSI(2.8bar)	4	3400	6/6.5
HV-30M	230VAC	30	25PSI(2.8bar)	1.5	2900	6/6.5
HV-40S	115VAC	40	25PSI(2.8bar)	4.2	3400	6/6.5
HV-40M	230VAC	40	25PSI(2.8bar)	1.8	2900	6/6.5
HV-50S	115VAC	50	25PSI(2.8bar)	4.5	3400	6/6.5
HV-50M	230VAC	50	25PSI(2.8bar)	2	2900	6/6.5

parts of urea pump

details of def pumps
