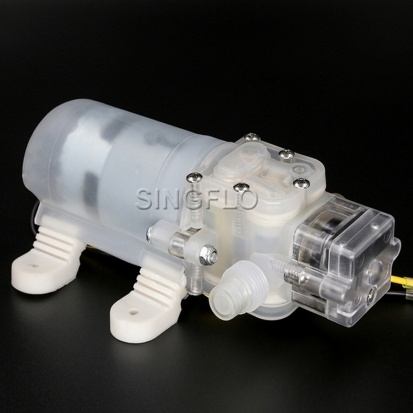

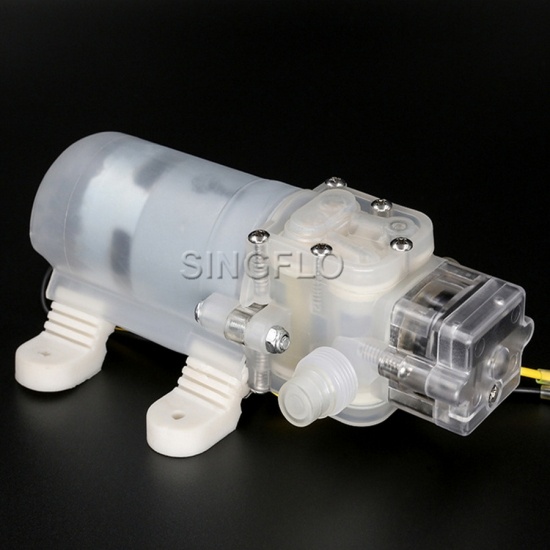

Food grade mini diaphragm pump
1.Good quality, high pressure, long life, stable performance, better than any similar pump in the market.
2.Allow Medium 0- 70 centigrade, Corrosion resestance, Acid Resistance, alkali resistance, Pesticide-Resistant.
3.Energy saving and enviroment protection: adopt mini self-priming booster pump and high quality dc motor, low power consumption, energy saving.
4.Portable, small size 6 inch, weight about 0.7 kg.
5.Convenient connector: adopt international standard specification
6.Intelligent Over-voltage protection system: automatically monitor water pressure to take corresponding reaction to protect motor or pump well.
7.Application: suitable for pumping red wine, milk, soybean milk,drinking water, oil, milky tea and food liquid
Electric diaphragm pump technical data
| Items | volts | power | max pressure | max flow rate | Amps | suction ability | lift | control type |
| FL3865 | 12V DC | 30W | 4.0 barb(58psi) | 2.0LPM | 2.5A | 1.2M | 40M | Pressure switch/bypass |
| FL4451 | 12V DC | 60W | 5.0 barb(75psi） | 4.0LPM | 3.5A | 1.5M | 50M | Pressure switch/bypass |
