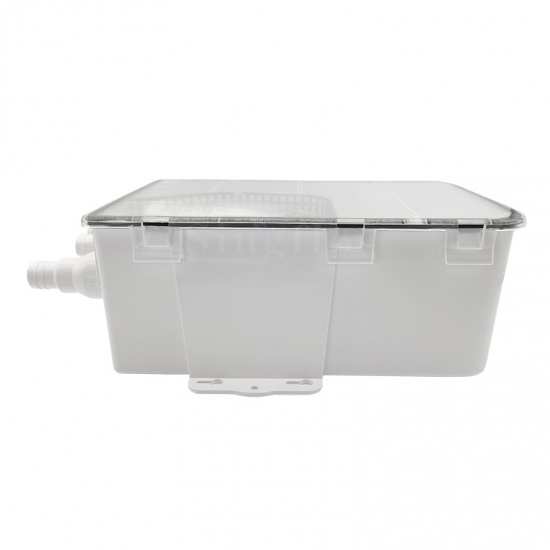

SHOWER SUMP PUMP SYSTEM AUTO BILGE/DRAIN BOX-Boat/Caravan

Specifications:

Voltage: 12V DC

Flow capacity: 600Gallons per hour

Max. delivery head: 3.8 metres (height of vertical water flow up pipe)

Flow capacity is measured at vertical flow (no delivery head). No flow at maximum delivery head

Current draw: Only 3 Amp

Multiple inlet ports: 1 x 3/4", 1 x 3/4" or 1", 1 x 1-1/8" or 1-1/2"

Outlet discharge port: 3/4"

Overall dimensions: Length 334mm x Width 215mm x 112mm (including fittings)

3-wire lead, approx. 1m long

Approvals: CE

To be used to pump clean water only

NOT designed for continuous use. Intermittent use only, duty cycle: 30 minute intervals

Features:

High quality, 100% marine grade UV stabilised white ABS plastic construction

Compact, full capacity automatic shower sump draining kit

600 Gallons per hour automatic pump with built-in float switch, turns on and off automatically as required

Designed to pump shower/sink water overboard or into a holding tank

Clear snap-on cover for easy access and cleaning, with gasket seal

Tight fitting lid to minimise splashing and odors

Removable mesh filter allows easy cleaning

Easy to install - Suits most Attwood/Johnson/Rule footprints

Outlet discharge hose: 3/4"

Check valve on outlet

Ignition protected

Ideal for use in boats, RV, caravans, motorhomes, and camper trailers

Includes mounting/operating instructions

Mounting screws not included

Sump pump system detailed data:
