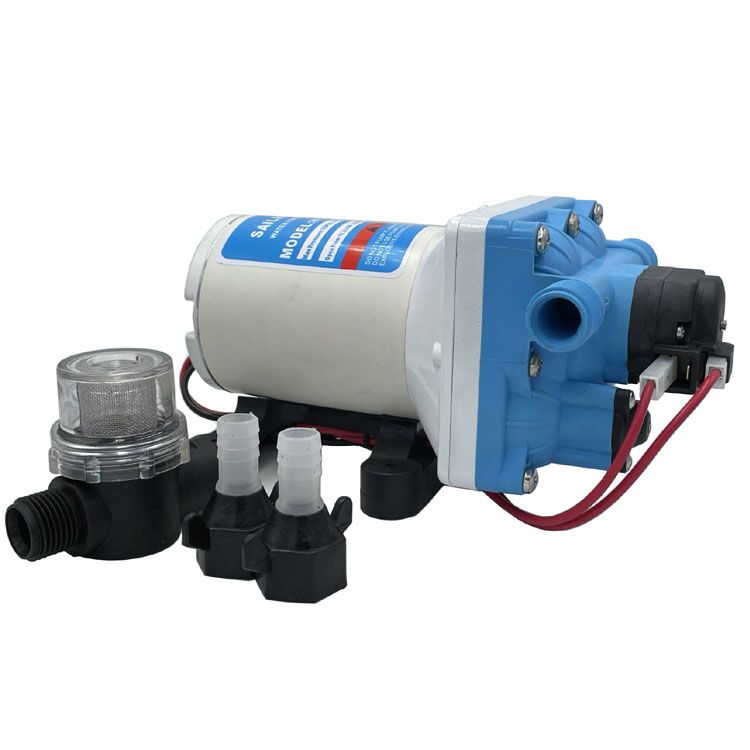

Singflo 3GPM 4GPM 5GPM 55psi revolution marine 12v self-priming rv fresh water pump
Max 3.0/4.0/5.0 Gallons Per Minute capacity flow, and 55 PSI pressure,This series pump can be used for general water transfer, sprayer pumps, small rain system, or other industry usage(perfect for water heater shower, caravans, RV, knapsack sprayer) , use it with fresh or salt water or other liquid with weak acid & alkaline is ok.
The pump with built-in pressure switch, can be working automatically when the tap turn on-off.
Details Images
Type | 4 Chamber Diaphragm |
Port Size | 1/2'' MNPT male thread |
Liquid | 140°F [60 °C] Max |
Self-priming | 6 feet (about 1.8m) |
Max.Pressure | 55psi |
Run Dry | Yes (within 30 second) |
Duty Protection: | Thermal Overload, fuse, Automatic Restart |
Motor | Permanent Magnet, Intermittent |
√ Permanent Magnet motor with longer lifetime
√ Anti vibration pad,easy installation
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellent resistant to chemical corrosion
Technical Data
Model | Volt | Flow(LPM/GPM) | Pressure(PSI/bar) | Valve |
Amp Draw(A) |

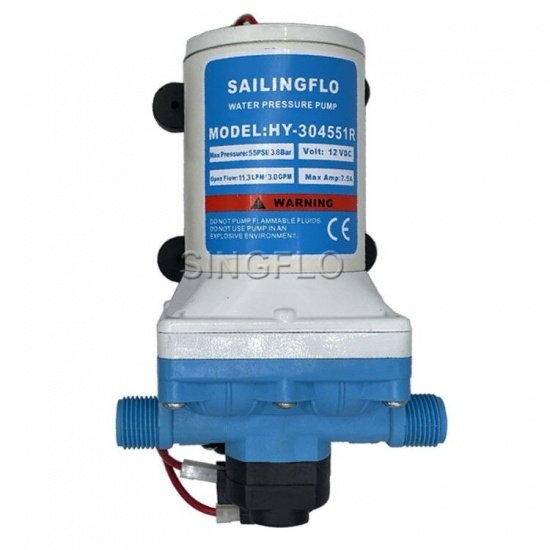

HY-304551R | 12V | 11.3/3.0 | 55/3.7 | EPDM/VITON | 7.5 |
HY-304552R | 24V | 11.3/3.0 | 55/3.7 | EPDM/VITON | 4 |
HY-404551R | 12V | 15.2/4.0 | 55/3.7 | EPDM/VITON | 8.5 |
HY-404552R | 24V | 15.2/4.0 | 55/3.7 | EPDM/VITON | 5 |
HY-504551R | 12V | 18.9/5.0 | 55/3.7 | EPDM/VITON | 15 |
HY-504552R | 24V | 18.9/5.0 | 55/3.7 | EPDM/VITON | 7.5 |
