YM2440-30 4'' 360LPH Submersible deep well solar powered water pumps

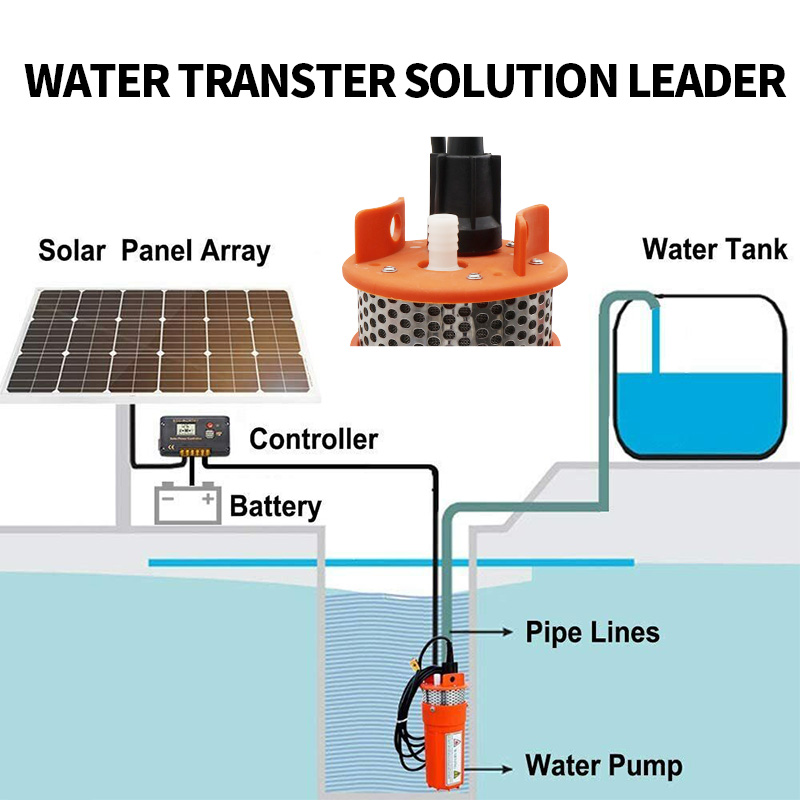

Application of solar water pump

Description:

*Solar-powered submersible pump suitable for wells with a 4 inch diameter or larger

*Designed to be strong and yet lightweight

*Wide-rang of parts and kits for ease of rebuilding and repair.

Deep well Pump Features & Benefits

*Strong Construction,yet lightweight (2.7kgs,6 lbs)

*Corrosion-proof housing with stainless-steel fasteners

*Dry Running capability without pump damage

*Long-life, 24V/12V DC Operation

*Easily repaired in the field

*State of the art solid diaphragm

Technical Characteristics

Pump Design	Positive Displacement 3 Chamber Diaphragm Pump
Motor	Permanent Magnet, Thermally Protected
Voltage	24V/12V DC Nominal
Amps:	4.0 Max/8.0 Max.
Internal Bypass	105-110PSI Max.(7.2-7.5 Bars)
Maximum Lift	230 feet Maximum (70m)
Maximum Submersion	100 feet Maximum (30m)
Outlet Port	1/2'' (12.7mm) Barbed Fitting for 1/2''(12.7mm) I.D.Tubing
Inlet	50 Mesh Stainless Steel screen
Materials	High Strength Engineered Plastics, Stainless Steel Fasteners

Model No.:

Solar pump Dimensions:
