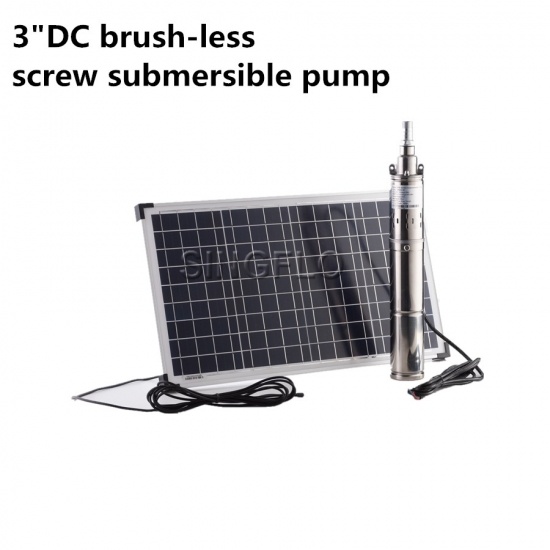

3" Brush-less solar pump application:

* Livestock watering

* Drinking water & domestic water supply

* Pond management & small water works

* Irrigation systems

* Responsible Leisure

* Groundwater lowering

Feature:

* Unique 3” design,

* Wide voltage window

* Overload protection

* Over & undervoltage protection,thermal protection setting.

*  Stainless steel components provide long service life

* Fast & simple installation with inner controller & MPPT.

* Automatic restart

* Maintenance Free with DC Brushless Permanent magnet motors

* Dry -running with extra float switch

* Special design low speed starting motor for solar powered system,high energy efficiency.

Technical data:

* Performance range: Flow up to 2m3/hour

* Head upto 115m

* Wide voltage 24VDC:18-48V; 48VDC:36V-96V

* Frenqucy range:1-50HZ@ Max.Amp 16A

* Soft start low amp @0.5A motor speed 10RPM-2800RPM,

* Max.acceptalbe media temp:70°C

* Pump Diameter:76mm

* DC Brushless Permanent magnet motors life:18000hours

* Net weight:4.25kgs; Gross weight:5.5kgs

* Thread connections:1”

* Materials Stainless steel AISI 304

* Same power solar panels start work,recommend solar panels of 1.3-1.5times @ Max.lift & flow.

* JPB series submersible pump can be installed vertically or horizontally

* Package: wooden case size:54.5*10.5*10.5cm
