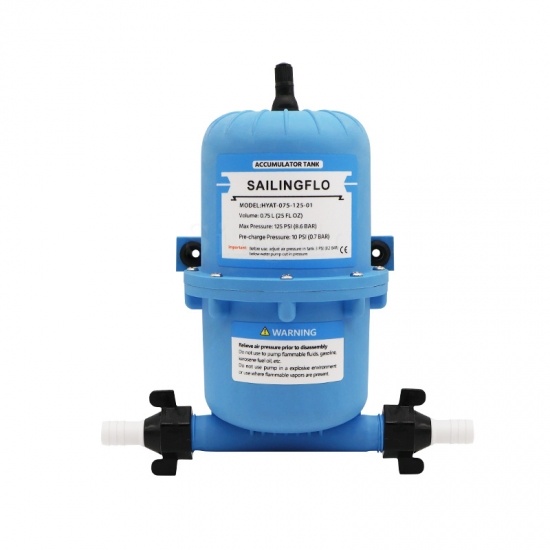

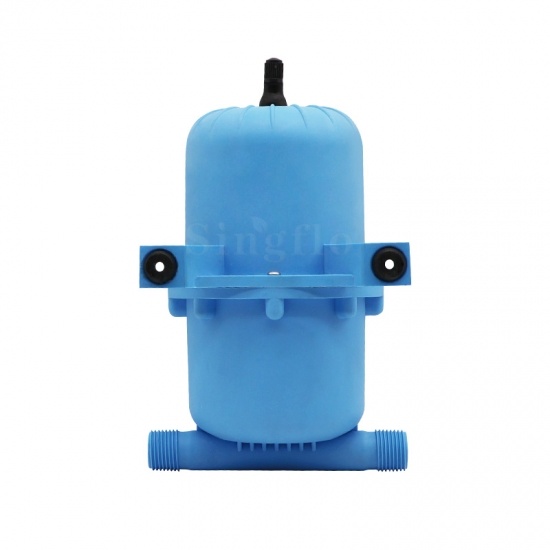

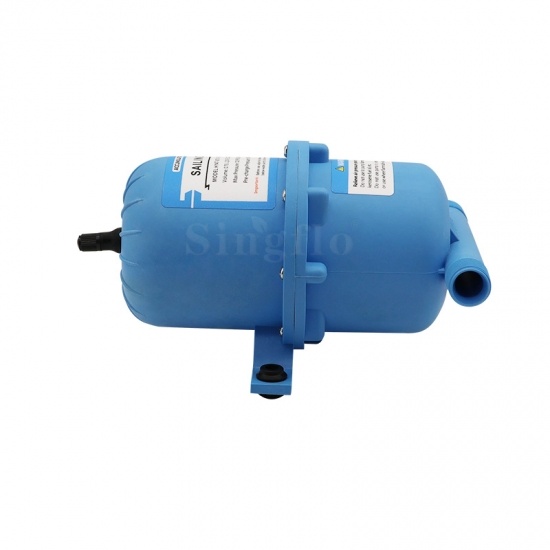

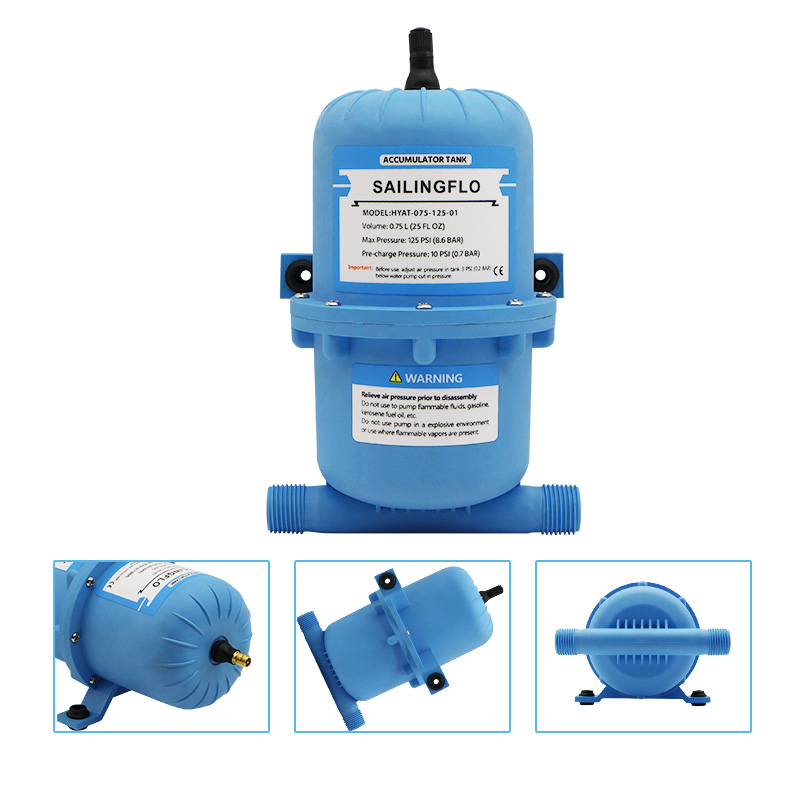

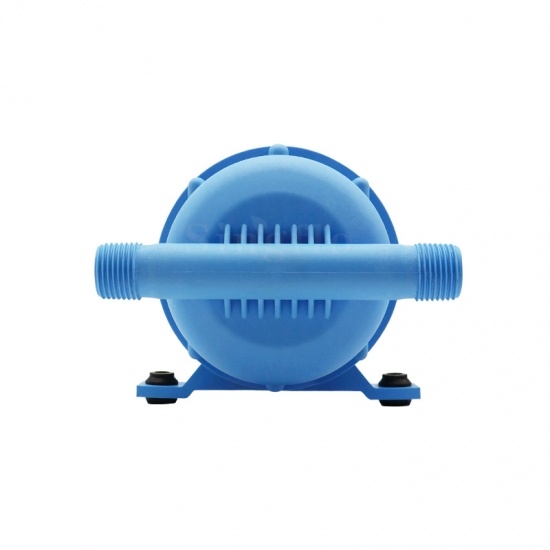

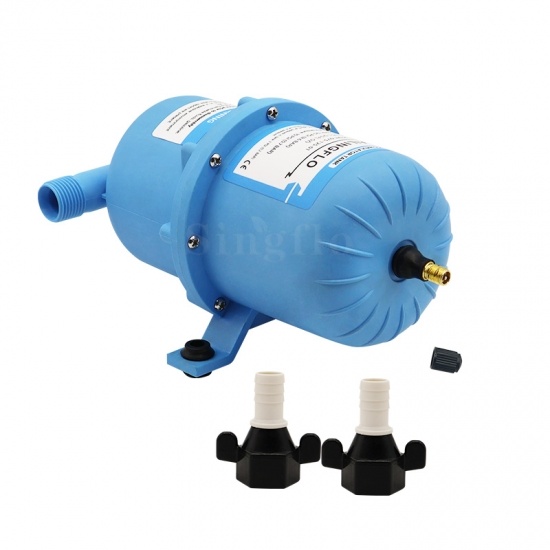

Singflo 0.75/1.0 Liter RV Caravan boat water pump Pressurized Accumulator Tank
Accumulator tanks hold a reservoir of air and water down stream from the pump. The air acts as a cushion, absorbing pump and pressure fluctuations, smoothing the flow and making the system quieter. Accumulators allow the pump to reach shut-off pressure more smoothly which reduces the on/off cycle which gives better control of hot water delivery.
Applications

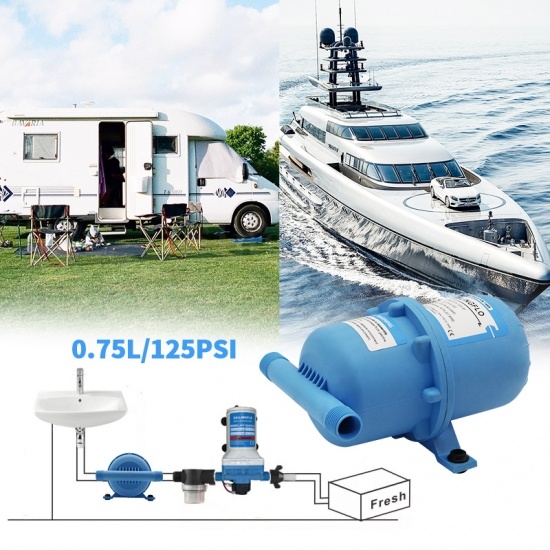

Boat/RV/Caravan pressurized water system
Food beverage filling and liquid transfer and any other pressurization system
Specifications
Volume:0.75L(25 FL OZ)
MAX Pressure: 125 PSI(8.6 BAR)
1/2 NPT inlet and outlet ports
Features & Benefits
- Smoother flow, quieter water systems.
- Internal rubber membrane eliminates maintenance and allows universal mounting.
- Better control of hot water temperatures.
- Simply fitted to new or existing systems.
- Longer pump life, lower battery drain.

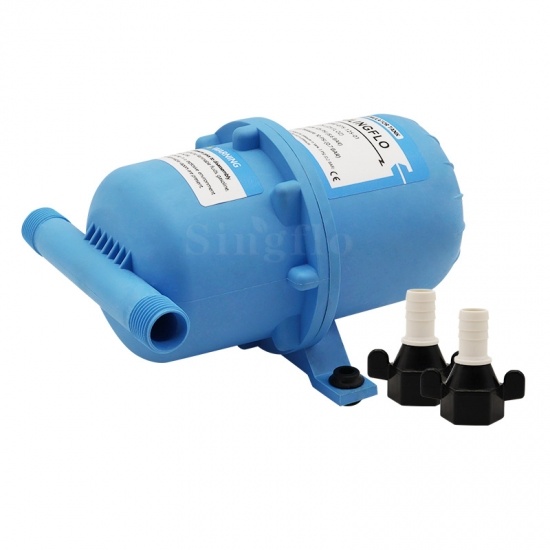

- Snap-in port fittings.
Standard Configurations
Model | Internal Volume |
Pre-Charge (PSI/Bar) |
Max.Operating (LPM/GPM) |
Air fill Vale | Inlet/Outlet Dia | Weight | Dimension |
HYAT-075-125-01 | 0.75L/23.5OZ | 10/0.7 | 125/8.6 |
Standard automotive style tire valve |

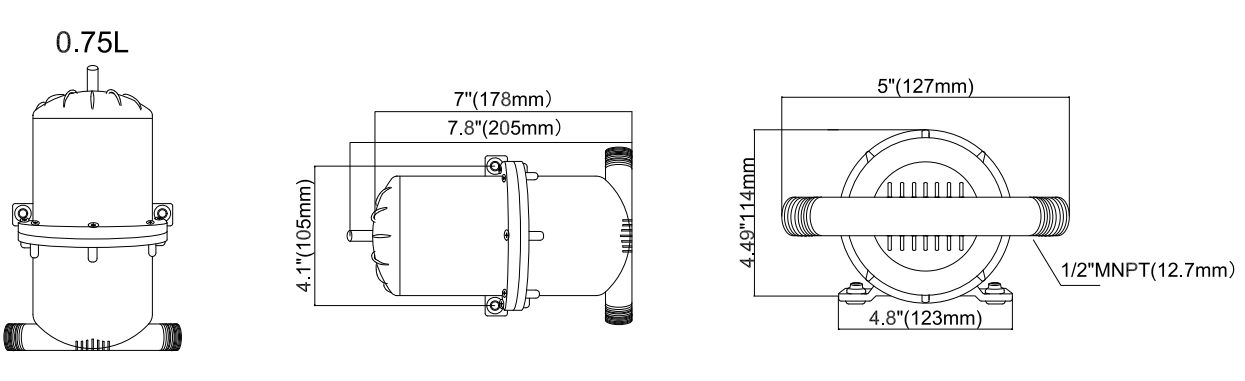

1/2''MNPT | 0.79lbs | 8.1''x4.6'' |
Key | Description | Quantity |
1 | Connector | 2 |
2 | Pump Cover | 1 |
3 | Diaphragm | 1 |
4 | Rubber Feet | 2 |
5 | Pump Housing | 1 |
6 | Screw | 8 |
7 | Relief | 1 |
