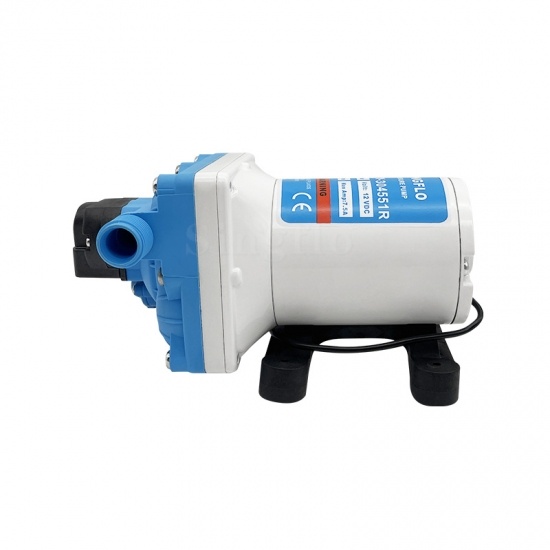

Singflo 12V 3GPM 55psi on-demand delivery leisure boat pump

Singflo 12V 3GPM 55psi on-demand delivery leisure boat pump

Max 3.0 Gallons Per Minute capacity flow, and 55 PSI pressure,This series pump can be used for leisure boat, yacht, deck or other industry usage,use it with fresh or salt water or other liquid with weak acid & alkaline is ok.

The advantage of this kind of automatic diaphragm pump with pressure switch: Self-absorbtion, can dry operating in short time, reliable function and lower flow rate. And can start automatically when turn on the water -tap, stops when turn off.

Details Images

Type	4 Chamber Diaphragm
Port Size	1/2'' MNPT male thread
Liquid	140°F [60 °C] Max
Self-priming	6 feet (about 1.8m)
Max.Pressure	55psi
Run Dry	Yes (within 30 second)
Duty Protection:	Thermal Overload, fuse, Automatic Restart
Motor	Permanent Magnet, Intermittent

√ High volume flow rate, Built-in check valve
√ Permanent Magnet motor with longer lifetime
√ Anti vibration pad,easy installation
√ Self-priming,Top quality Automatic Pressure Switch.
√ Add a fuse Protected, Thermally Protected
√ Low Noise,with excellent resistant to chemical corrosion

Technical Data

Model	Volt	Flow(LPM/GPM)	Pressure(PSI/bar)	Valve	Amp Draw(A)
HY-304551R	12V	11.3/3.0	55/3.7	EPDM/VITON	7.5
HY-304552R	24V	11.3/3.0	55/3.7	EPDM/VITON	4
HY-404551R	12V	15.2/4.0	55/3.7	EPDM/VITON	8.5
HY-404552R	24V	15.2/4.0	55/3.7	EPDM/VITON	5
HY-504551R	12V	18.9/5.0	55/3.7	EPDM/VITON	15
HY-504552R	24V	18.9/5.0	55/3.7	EPDM/VITON	7.5
